Content
Model name : Seeder (Soybean/for tractor)
Working crop : Soybean
Characteristics
Specifications/Application
| Model Name | DRP-1002SP |
DRP-2004SP |
|
|---|---|---|---|
| Specification | 2 rows (1 ridge) |
4 rows (2 ridges) |
|
| Size | Length(mm) | 2680 | 2680 |
| Width(mm) | 1820 | 2935 | |
| Height(mm) | 1320 | 1560 | |
| Weight(kg) | 835 | 1210 | |
| Structure | Driving method | Tractor PTO and ground wheel | Tractor PTO and ground wheel |
Ridge forming device |
Arched ridge forming plate |
Arched ridge forming plate |
|
Soil crushing device |
Rotary type |
Rotary type |
|
Number of ridges |
1 |
2 | |
Seed discharge device |
Disk type |
Disk type |
|
Seeding method |
Spot seeding type |
Spot seeding type |
|
Inter-row spacing adjustment range |
Seeding parts position control type |
Seeding parts position control type |
|
Seeding interval adjustment range |
15~37 |
15~37 |
|
Seeding interval adjustment method |
Sprocket replacement type (11 steps) |
Sprocket replacement type (11 steps) |
|
| Other structures | Spray pump | Horizontal double plunger type | Horizontal double plunger type |
| Liquid tank capacity | 300L | 300L×2 | |
Nozzle diameter × number of nozzles |
1.2mm×5ea | 1.2mm×8ea | |
| Ridge size (width × height) | 90~120 × up to 30 | 90~120 × up to 30 | |
| Work efficiency | 42.4 min/10a | 23.9 min/10a | |
| Recommended horsepower (HP) | 60 HP or more | 100 HP or more | |
| Key Features | Refer to the above | Refer to the above | |
Working photograph/video

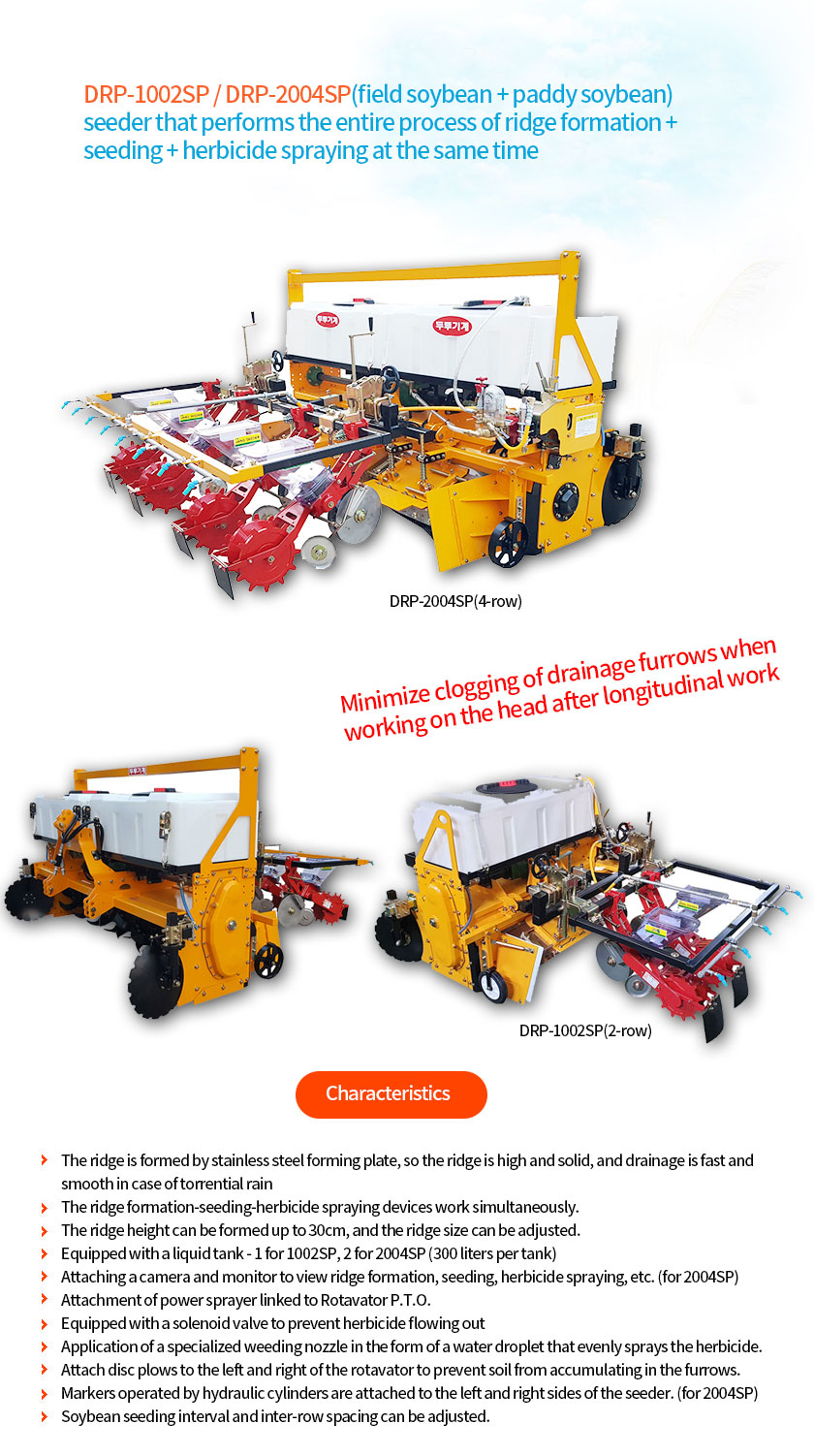

Soybean seeder working scene
(DRP-1002SP)
Soybean seeder working scene
(DRP-1002SP)
