HOME > Products > Underground Crop Harvester (for riding cultivator)X MODEL
첨부파일
link
Content
Model name : Underground Crop Harvester (for riding cultivator/transfer type)
Harvest crop : Potato, Medicinal plant

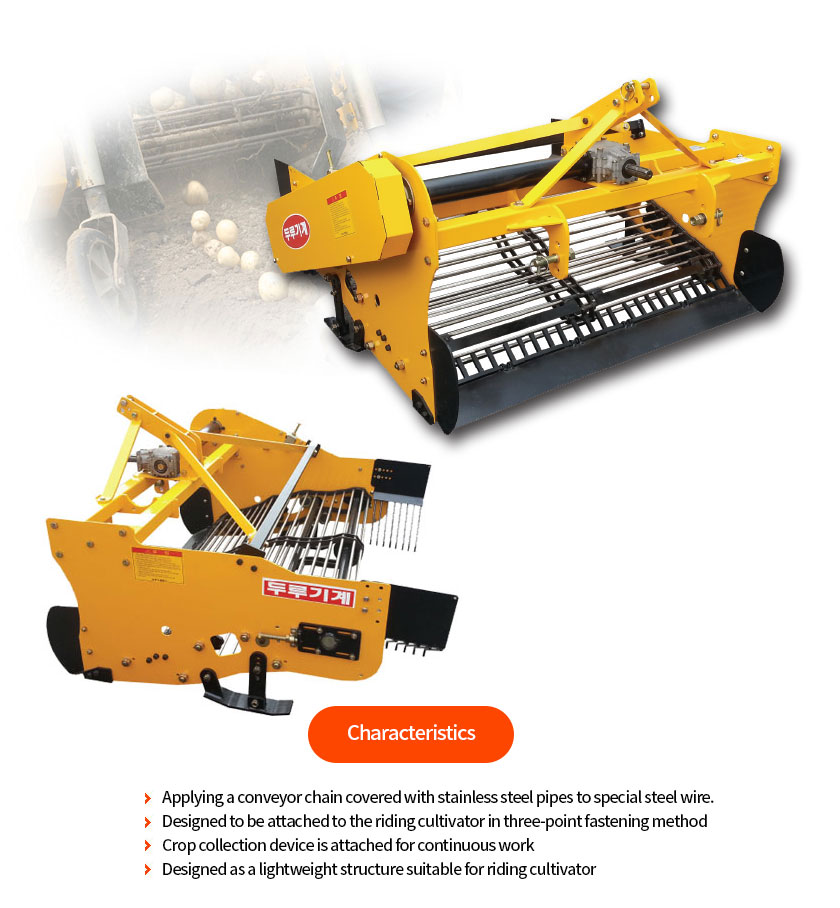

Characteristics
Specifications/Application
| Model Name | DR-1000X | DR-1300X | DR-1400X | |
|---|---|---|---|---|
| Specification/Digging Width (cm) | 100 | 130 | 140 | |
| Size | Length(mm) | 1450 | 1450 | 1450 |
| Width(mm) | 1150 | 1450 | 1550 | |
| Height(mm) | 960 | 960 | 960 | |
| Weight(kg) | 228 | 248 | 266 | |
Power transmission system |
Transmission method |
Belt type | Belt type | Belt type |
| Belt type | V-belt (Type B) | V-belt (Type B) | V-belt (Type B) | |
Number of belt row |
2-row | 2-row | 2-row | |
| Recommended horsepower (HP) | 18 HP or more | 18 HP or more | 18 HP or more | |
| Applied crop (use) | Potato, Medicinal plant | |||
| Note | Depending on the type of cultivation (ridge size) of the buyer and the tractor model you have, the standard (digging width) may be applied differently, so please purchase it after consulting with the headquarters. |
|||
Working photograph/video
