DRSH-100 MODEL

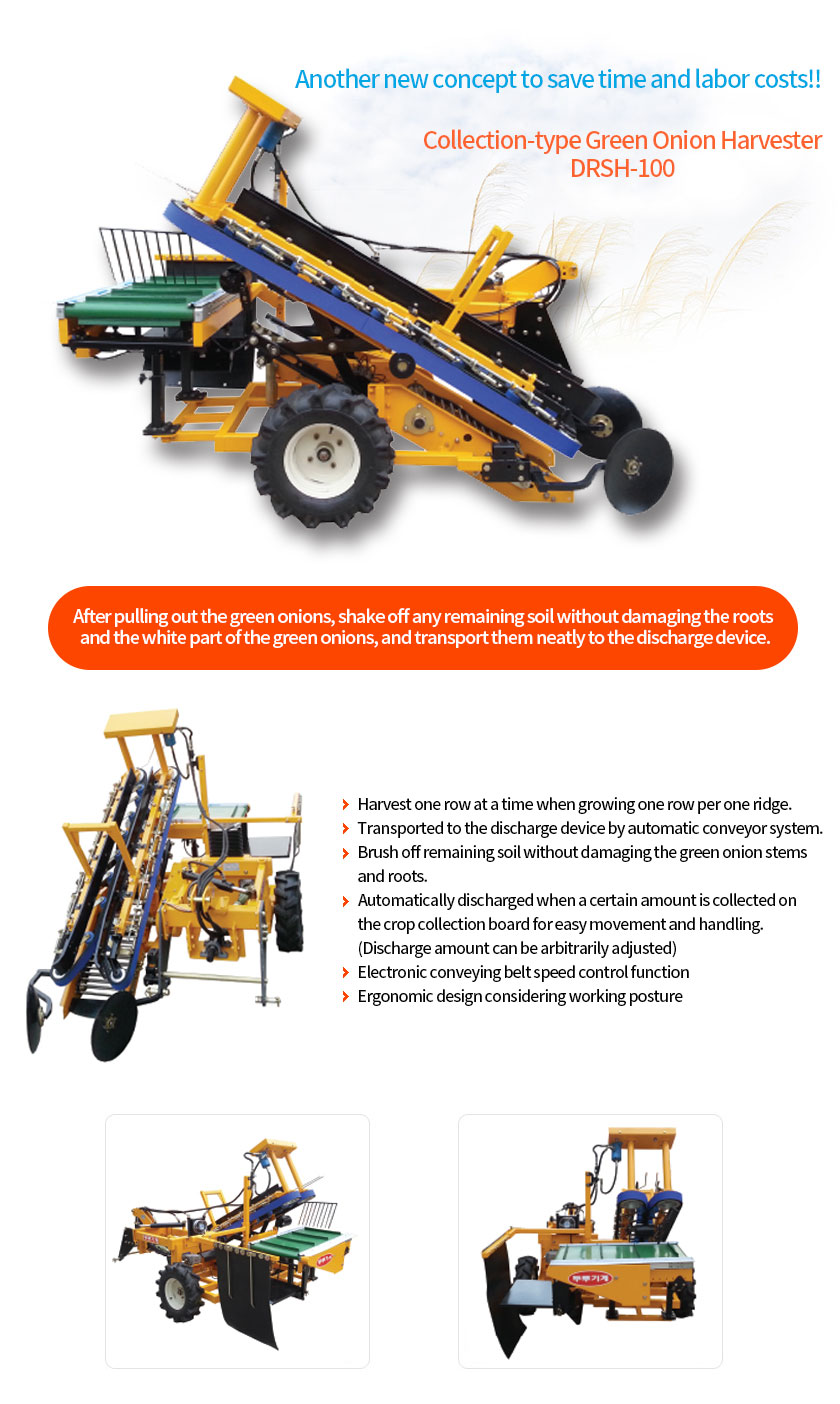

Model name : Harvester (Green onion) (for tractor/collection-type)

Harvest crop : Green onion

Characteristics

Specifications/Application

Model Name		DRSH-100
Specification		1 row
Size	Length(mm)	3000
	Width(mm)	2030
	Height(mm)	1920
	Weight(kg)	840
Power transmission system	Power transmission method	Chain type
	Chain type	RS#60/#40
	Number of chain row	1-row
Digging device	Maximum digging depth (mm)	300
	Digging width (mm)	400
	Shape of digging blade	Flat plate type
Crop transport device	Transport method	Pinching belt type
	Height adjustment method	Handle adjustment type
	Height adjustment range (mm)	0~130
	Belt transport speed	0.68m/s
Root soil removing device	Type	Cylindrical brush
	Size (mm)	Ø265
	Rotation speed (rpm)	618
	Height adjustment method	Handle adjustment type
	Height adjustment range (mm)	0~100
Transverse conveyor	Transport method	Flat belt type
	Transport speed	0.81m/s
	Speed control method	Electronic control
Collection device		Container collection
Recommended horsepower (HP)		43Recommended horsepower (HP)
Applied crop (use) / Characteristic		Harvesting green onions (when growing 1 row per 1 ridge)

Working photograph/video

Green onion harvesting scene
