Model name : Garlic clove separator (roller press type)
Use : Separate garlic cloves
Characteristics
Specifications/Application
| Model Name | DRSP-350K | ||
|---|---|---|---|
| Type/Specification | Roller press type/- | ||
| Size | Length | 550 | |
| Width | 1120 | ||
| Height | 1245 | ||
| Weight | 280 | ||
| Power transmission method | Belt type + chain type | ||
| Supply method | Manual supply | ||
| Clove separating device | Type | Roller press type | |
| 1st roller | Rotation speed (rpm) | 24/12 | |
| Rotation speed ratio | 2:1 | ||
| Adjustment range (mm) | 10~30 | ||
| 2nd roller | Rotation speed (rpm) | 24/12 | |
| Rotation speed ratio | 2:1 | ||
| Adjustment range (mm) | 0~25 | ||
| 3rd roller | Rotation speed (rpm) | 24/12 | |
| Rotation speed ratio | 2:1 | ||
| Adjustment range (mm) | 0~15 | ||
| Selection device | Blower type and method | Sirocco opening/closing type | |
| Attached motor | Clove separating device drive | Operating voltage | 220V |
| Rotation speed | 58 rpm | ||
| Rated output | 0.75KW | ||
| Blower drive | Operating voltage | 220V | |
| Rotation speed | 1630 rpm | ||
| Rated output | 0.27KW | ||
| Applied crop (use) / Characteristic | Separate whole garlic | ||

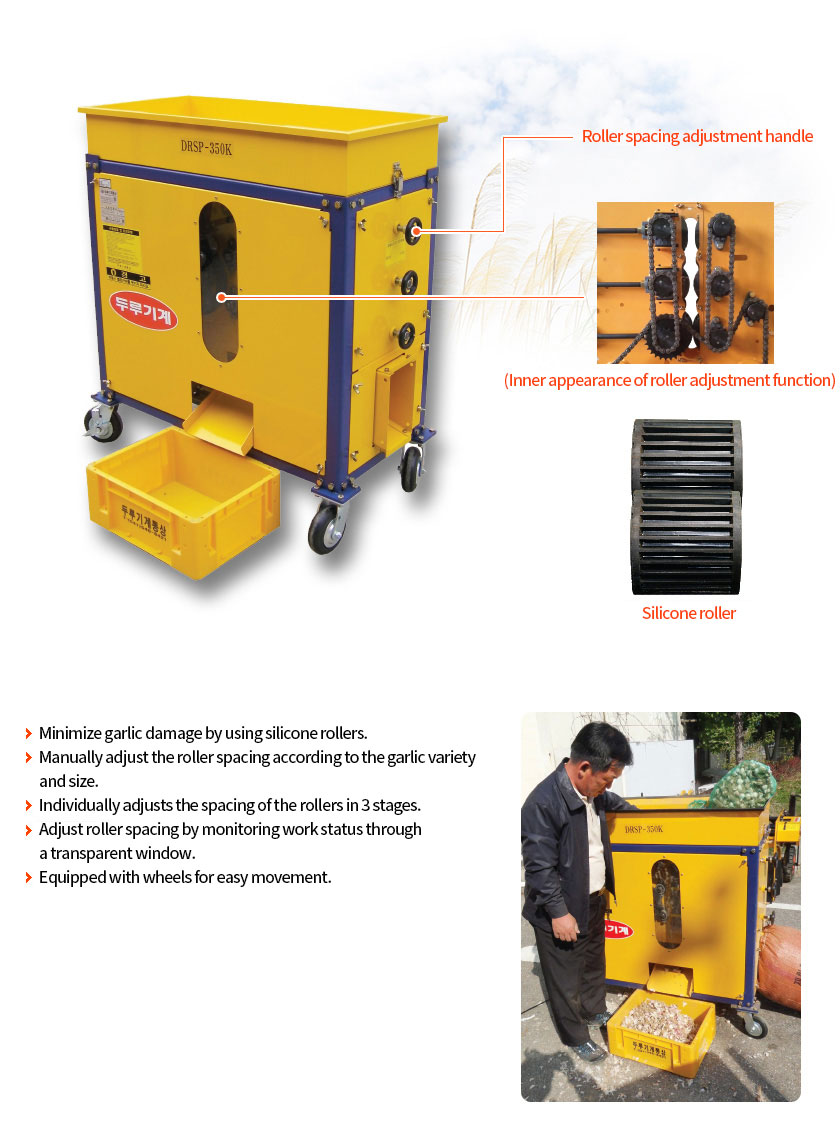

Working photograph/video
Garlic clove separator work scene
