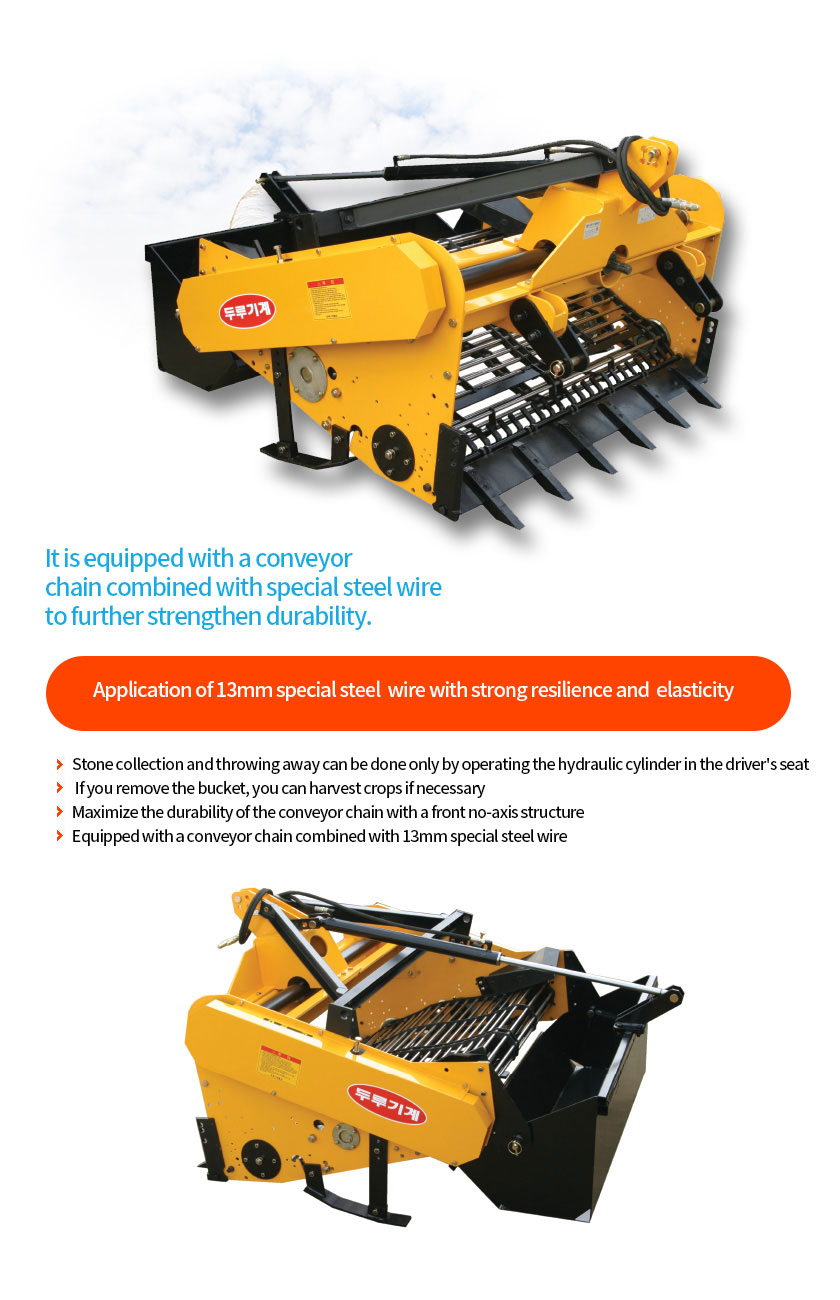

Model name : Stone Picker (ground-clearing machine) (for tractor/transfer type)
Use : Stone collection
Characteristics
Specifications/Application
| Model Name | DR-1400T | DR-1600T | DR-1800TN | |
|---|---|---|---|---|
| Specification/Digging Width (cm) | 140 | 160 | 180 | |
| Size | Length(mm) | 2150 | 2150 | 2150 |
| Width(mm) | 1630 | 1830 | 2030 | |
| Height(mm) | 1250 | 1250 | 1250 | |
| Weight(kg) | 656 | 694 | 732 | |
Power transmission system |
Transmission method | Belt type | Belt type | Belt type |
| Belt type | V-belt (Type B) | V-belt (Type B) | V-belt (Type B) | |
Number of belt row |
left and right respective 2-row |
left and right respective 2-row |
left and right respective 2-row |
|
| Recommended horsepower (HP) | 55 HP or more | 60 HP or more | 80 HP or more | |
| Use | Stone collection, Potato (when bucket is removed) |
Stone collection, Potato (when bucket is removed) |
Stone collection, Potato (when bucket is removed) |
|
Working photograph/video
Stone picking work scene
Stone picking work scene
Stone picking work scene
Stone picking work scene
Stone picking work scene
DR-1400ST
Stone picking work scene
DR-1400T
