HOME > Products > Underground Crop Harvester (for tractor)SM MODEL
첨부파일
link
Content

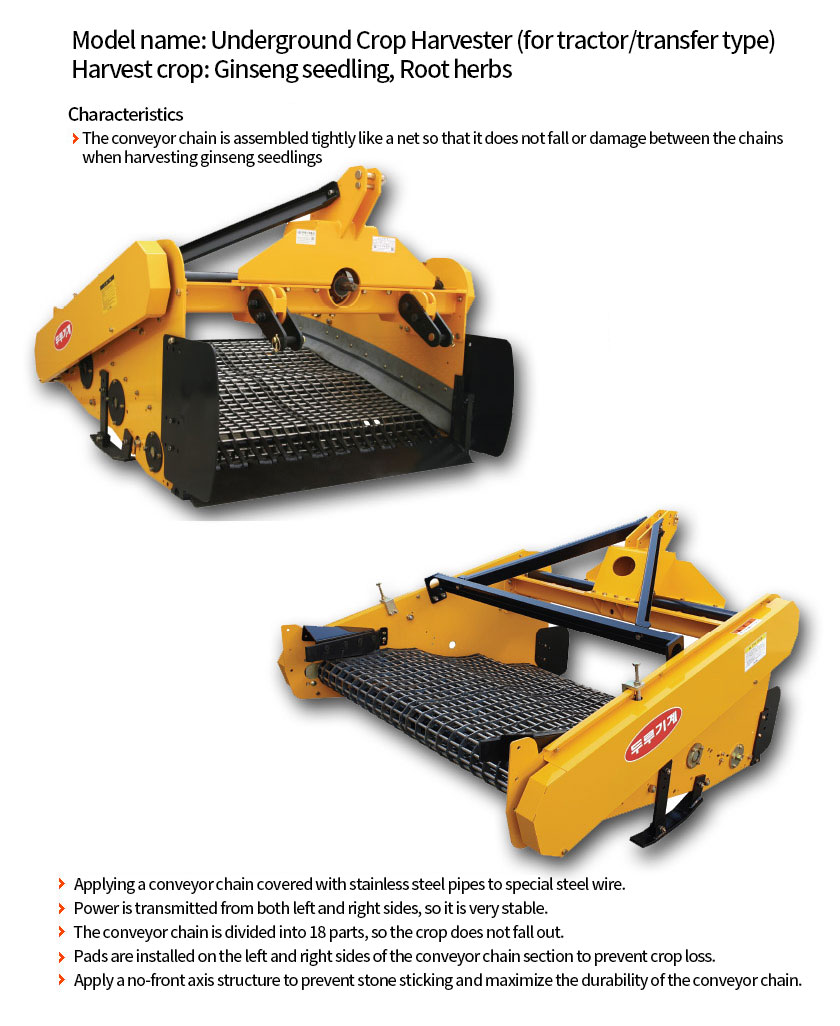

Model name : Underground Crop Harvester (for tractor/transfer type)
Harvest crop : Ginseng seedling, Root herbs
Characteristics
Specifications/Application
| Model Name | DR-1400M | DR-1500SM | DR-1600SM | |||
|---|---|---|---|---|---|---|
| Specification/Digging Width (cm) | 1400 | 1500 | 1600 | |||
| Size | Length(mm) | 2540 | 2540 | 2540 | ||
| Width(mm) | 1640 | 1740 | 1840 | |||
| Height(mm) | 1240 | 1240 | 1240 | |||
| Weight(kg) | 730 | 750 | 770 | |||
Power transmission system |
Transmission method | Belt type | Belt type | Belt type | ||
| Belt type | V-belt (Type B) | V-belt (Type B) | V-belt (Type B) | |||
| Number of belt row | left and right respective 3-row |
left and right respective 3-row |
left and right respective 3-row |
|||
Recommended horsepower (HP) |
60 HP or more | 70 HP or more | 75 HP or more | |||
| Applied crop (use) | Ginseng seedling, Root herbs |
Ginseng seedling, Root herbs |
Ginseng seedling, Root herbs |
|||
| Note | The crops applied by the above-stated standard (digging width) are classified based on the average of the general cultivation method and the harvest crops applied by farmers. Therefore, depending on the type of cultivation (ridge size) of the buyer and the tractor model you have, the standard (digging width) may be applied differently, so please purchase it after consulting with the headquarters. |
|||||
