HOME > Products > Underground Crop Harvester (for tractor)WJ MODEL
첨부파일
link
Content

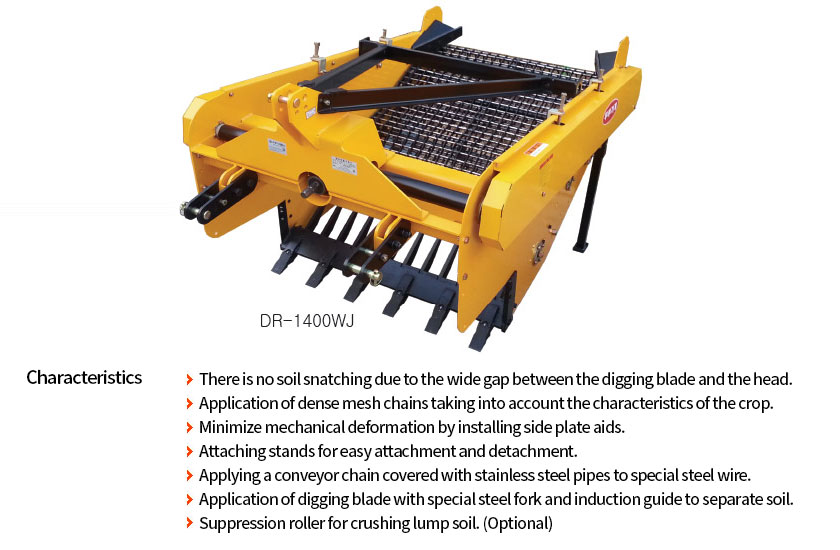

Model name : Underground Crop Harvester (for tractor/transfer type)
Harvest crop : Rehmannia glutinosa, Root herbs
Characteristics
Specifications/Application
| Model Name | DR-300WJ | DR-1400WJ | DR-1500WJ | |
|---|---|---|---|---|
| Specification/Digging Width (cm) | 130 | 140 | 150 | |
| Size | Length(mm) | 2730 | 2730 | 2730 |
| Width(mm) | 1610 | 1710 | 1810 | |
| Height(mm) | 1280 | 1280 | 1280 | |
| Weight(kg) | 880 | 910 | 940 | |
| Power transmission system |
Transmission method | Belt type | Belt type | Belt type |
| Belt type | V-belt (Type B) | V-belt (Type B) | V-belt (Type B) | |
| Number of belt row | left and right respective 3-row |
left and right respective 3-row |
left and right respective 3-row |
|
| Recommended horsepower (HP) | 100 HP or more | 100 HP or more | 100 HP or more | |
| Applied crop (use) | Rehmannia glutinosa, Root herbs |
Rehmannia glutinosa, Root herbs |
Rehmannia glutinosa, Root herbs |
|
