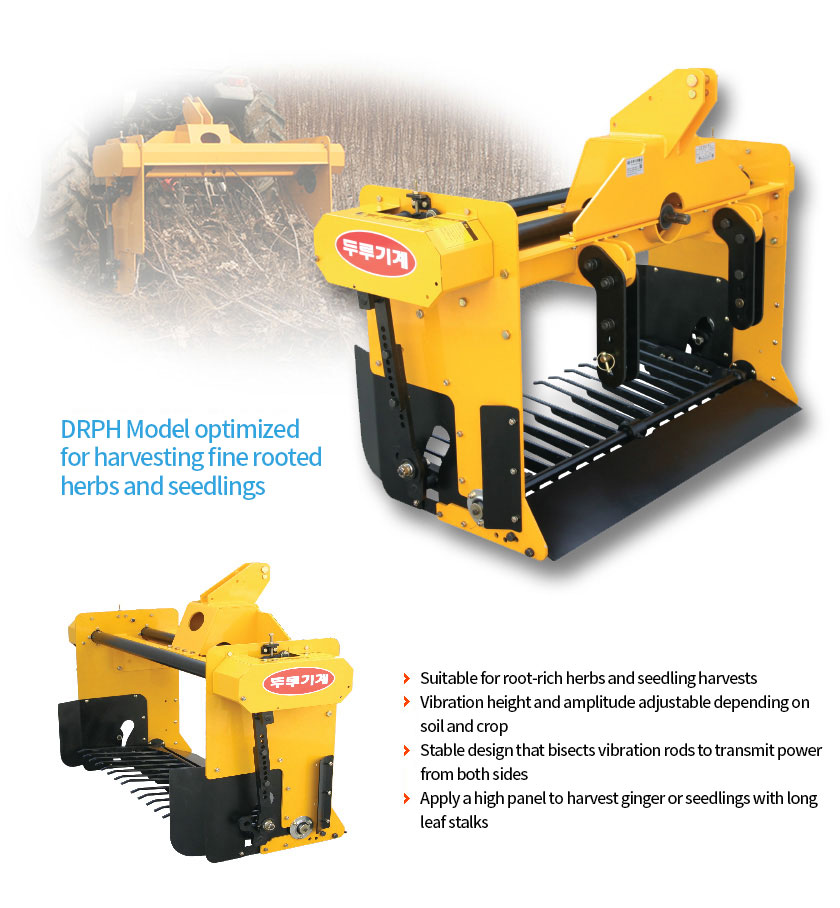

Model name : Underground Crop Harvester (for tractor/vibration type)
Harvest crop : Liriope platyphylla, Korean angelica, Seedling, Ginger
Characteristics
Specifications/Application
Model Name | DRPH-1300 | DRPH-1400 | DRPH-1500 | DRPH-1600 | |
---|---|---|---|---|---|
Specification/Digging Width (cm) | 130 | 140 | 150 | 160 | |
Size | Length(mm) | 920 | 920 | 920 | 920 |
Width(mm) | 1560 | 1660 | 1760 | 1860 | |
Height(mm) | 1335 | 1335 | 1335 | 1335 | |
Weight(kg) | 465 | 478 | 492 | 505 | |
Power transmission system | Transmission method | Gearbox direct connection type | Gearbox direct connection type | Gearbox direct connection type | Gearbox direct connection type |
Belt type | - | - | - | - | |
Number of belt row | - | - | - | - | |
Recommended horsepower (HP) | 43 HP or more | 50 HP or more | 55 HP or more | 60 HP or more | |
Applied crop (use) | Liriope platyphylla, Seedling, Ginger, Korean angelica | Liriope platyphylla, Korean angelica, Seedling, Ginger | Liriope platyphylla, Korean angelica, Ginger, Seedling | Liriope platyphylla, Korean angelica, Ginger | |
Note | The crops applied by the above-stated standard (digging width) are classified based on the average of the general cultivation method and the harvest crops applied by farmers. Therefore, depending on the type of cultivation (ridge size) of the buyer and the tractor model you have, the standard (digging width) may be applied differently, so please purchase it after consulting with the headquarters. |
Working photograph/video
Seedling harvesting scene
Seedling harvesting scene
Seedling harvesting scene
Seedling harvesting scene
