Model name : Underground Crop Harvester (for tractor/transfer type)

Harvest crop : Milkvetch root, Balloon flower, Bonnet bellflower, Deep root herbs

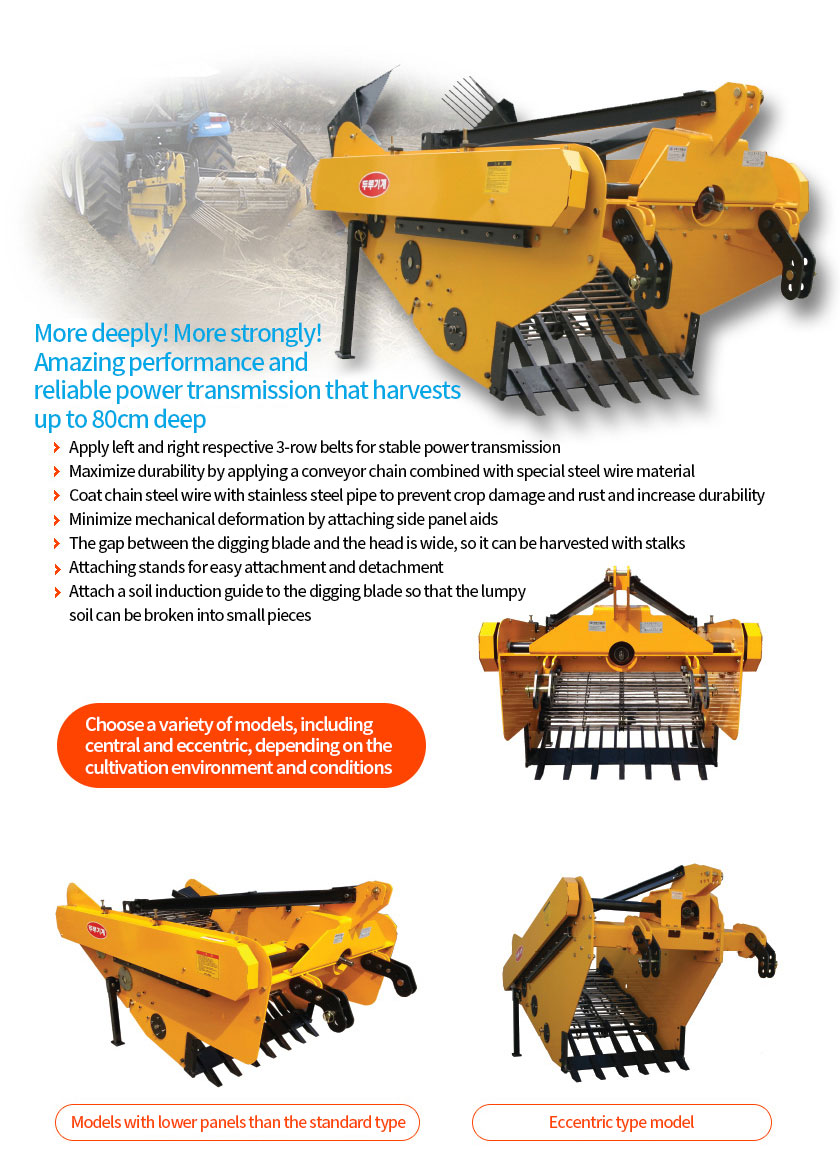

Characteristics

Specifications/Application

Model Name		DR-950W	DR-1000W	DR-1100W	DR-DR-1200W
Specification/Digging Width (cm)		95	100	110	120
Size	Lenght(mm)	2762	2762	2762	2762
	Width(mm)	1200	1250	1350	1450
	Height(mm)	1298	1298	1298	1298
	Weight(kg)	745	765	802	827
Power transmission system	Transmission method	Belt type	Belt type	Belt type	Belt type
	Belt type	V-belt (Type B)	V-belt (Type B)	V-belt (Type B)	V-belt (Type B)
	Number of belt row	left and right respective 3-row	left and right respective 3-row	left and right respective 3-row	left and right respective 3-row
Recommended horsepower (HP)		80 HP or more	90 HP or more	90 HP or more	100 HP or more
Applied crop (use)		Milkvetch root, Yam	Milkvetch root, Yam	Milkvetch root, Balloon flower, Yam	Milkvetch root, Balloon flower, Yam
Note		The crops applied by the above-stated standard (digging width) are classified based on the average of the general cultivation method and the harvest crops applied by farmers. Therefore, depending on the type of cultivation (ridge size) of the buyer and the tractor model you have, the standard (digging width) may be applied differently, so please purchase it after consulting with the headquarters.

Model Name		DR-1300W	DR-1400W	DR-1500W	DR-1600W
Specification/Digging Width (cm)		130	140	150	160
Size	Length(mm)	2762	2762	2762	2762
	Width(mm)	1550	1650	1750	1850
	Height(mm)	1298	1298	1298	1298
	Weight(kg)	853	879	908	934
Power transmission system	Transmission method	Belt type	Belt type	Belt type	Belt type
	Belt type	V-belt (Type B)	V-belt (Type B)	V-belt (Type B)	V-belt (Type B)
	Number of belt row	left and right respective 3-row	left and right respective 3-row	left and right respective 3-row	left and right respective 3-row
Recommended horsepower (HP)		100 HP or more	100 HP or more	100 HP or more	100 HP or more
Applied crop (use)		Milkvetch root, Yam, Balloon flower, Bonnet bellflower, Buplerum falcatum, Ledebouriella seseloides, Rehmannia glutinosa, Angelica dahurica root, Fleeceflower, Cnidium	Milkvetch root, Balloon flower, Bonnet bellflower, Buplerum falcatum, Ledebouriella seseloides, Rehmannia glutinosa, Angelica dahurica root, Fleeceflower, Cnidium	Milkvetch root, Balloon flower, Bonnet bellflower, Buplerum falcatum, Ledebouriella seseloides, Rehmannia glutinosa, Angelica dahurica root, Fleeceflower, Cnidium	Milkvetch root, Balloon flower, Bonnet bellflower, Buplerum falcatum, Ledebouriella seseloides, Rehmannia glutinosa Angelica dahurica root, Fleeceflower, Cnidium
Note		The crops applied by the above-stated standard (digging width) are classified based on the average of the general cultivation method and the harvest crops applied by farmers. Therefore, depending on the type of cultivation (ridge size) of the buyer and the tractor model you have, the standard (digging width) may be applied differently, so please purchase it after consulting with the headquarters.

Working photograph/video

Milkvetch root harvesting scene
