Model name : Underground Crop Harvester (for tractor/combination type)
Harvest crop : Ginseng, Balloon flower, Bonnet bellflower, Rehmannia glutinosa

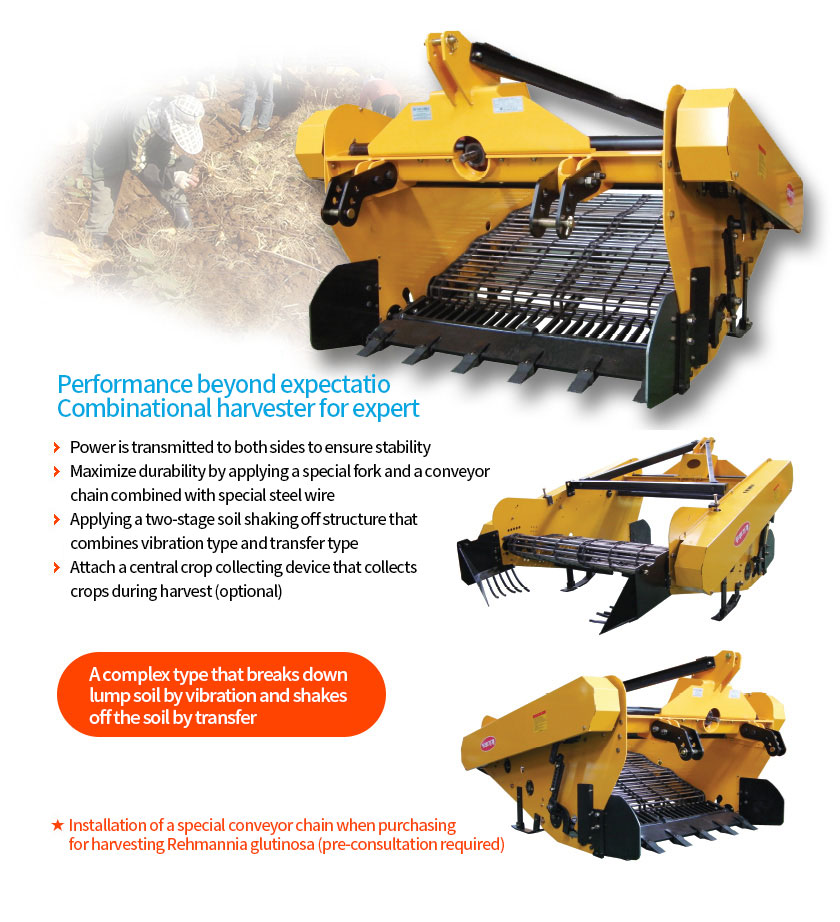

Characteristics
Specifications/Application
| Model Name | DR-1400Q | DR-1500Q | DR-1600Q | |
|---|---|---|---|---|
| Specification/Digging Width (cm) | 140 | 150 | 160 | |
| Size | Length(mm) | 2431 | 2431 | 2431 |
| Width(mm) | 1840 | 1940 | 2040 | |
| Height(mm) | 1325 | 1325 | 1325 | |
| Weight(kg) | 750 | 780 | 810 | |
Power transmission system |
Transmission method |
Belt type | Belt type | Belt type |
Belt type |
V-belt (Type B) | V-belt (Type B) | V-belt (Type B) | |
Number of belt row |
left and right respective 3-row |
left and right respective 3-row |
left and right respective 3-row |
|
| Recommended horsepower (HP) | 90 HP or more | 100 HP or more | 100 HP or more | |
| Applied crop (use) | Ginseng, Rehmannia glutinosa, Bonnet bellflower, Balloon flower |
Ginseng, Rehmannia glutinosa, Bonnet bellflower, Balloon flower |
Ginseng, Rehmannia glutinosa, Bonnet bellflower, Balloon flower |
|
| Note | Depending on the type of cultivation (ridge size) of the buyer and the tractor model you have, the standard (digging width) may be applied differently, so please purchase it after consulting with the headquarters. |
|||
Working photograph/video
Ginseng harvesting scene
Ginseng harvesting scene
