Model name : Underground Crop Harvester (for tractor/transfer type)
Harvest crop : Ginseng, Balloon flower, Bonnet bellflower, Buplerum falcatum, Ledebouriella seseloides, Rehmannia glutinosa, Angelica dahurica root, Fleeceflower, Yam, Peony, Cnidium, Stone picking

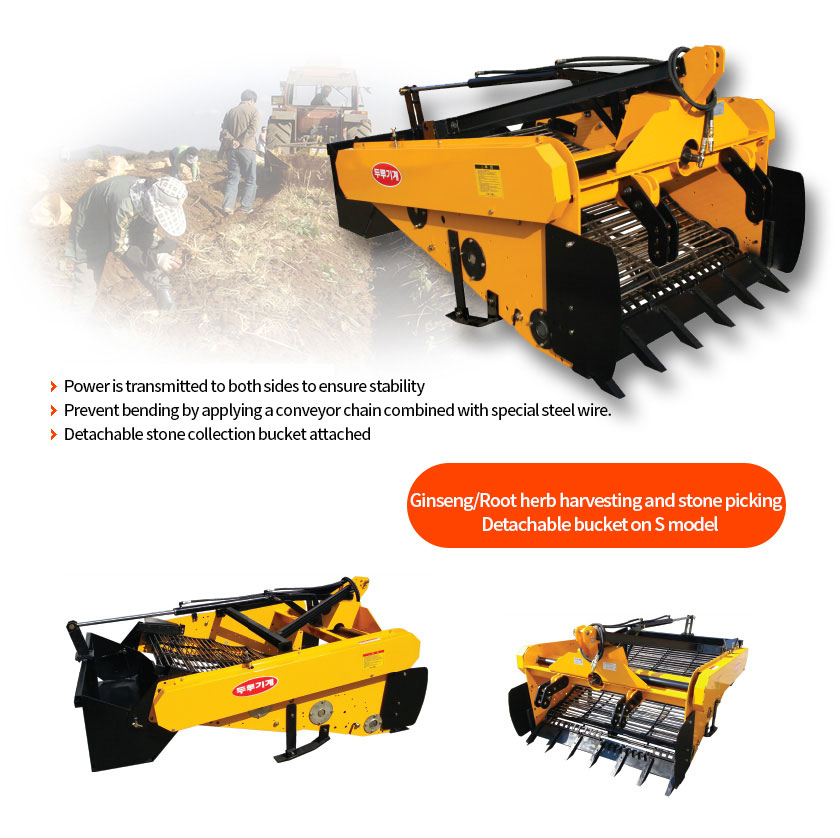

Characteristics
Specifications/Application
| Model Name | DR-1300ST | DR-1400ST | DR-1500ST | DR-1600ST | DR-1800ST | |
|---|---|---|---|---|---|---|
| Specification/Digging Width (cm) | 130 | 140 | 150 | 160 | 180 | |
| Size | Length | 2700 | 2700 | 2700 | 2700 | 2700 |
| Width | 1550 | 1650 | 1750 | 1850 | 2050 | |
| Height | 1240 | 1240 | 1240 | 1240 | 1240 | |
| Weight(kg) | 770 | 800 | 835 | 870 | 930 | |
| Power transmission system | Transmission method | Belt type | Belt type | Belt type | Belt type | Belt type |
| Belt type | V-belt (Type B) | V-belt (Type B) | V-belt (Type B) | V-belt (Type B) | V-belt (Type B) | |
| Number of belt row | left and right respective 3-row | left and right respective 3-row | left and right respective 3-row | left and right respective 3-row | left and right respective 3-row | |
| Recommended horsepower (HP) | 55HP or more | 60HP or more | 65HP or more | 80HP or more | 90HP or more | |
| Applied crop (use) | BBalloon flower, Bonnet bellflower, Buplerum falcatum, Ledebouriella seseloides, Rehmannia glutinosa, Angelica dahurica root, Fleeceflower, Peony, Cnidium, Stone picking | Ginseng, Balloon flower, Bonnet bellflower, Buplerum falcatum, Ledebouriella seseloides, Rehmannia glutinosa, Angelica dahurica root, Fleeceflower, Cnidium, Stone picking | Ginseng, Balloon flower, Bonnet bellflower, Buplerum falcatum, Ledebouriella seseloides, Rehmannia glutinosa, Angelica dahurica root, Fleeceflower, Stone picking | Ginseng, Stone picking | Ginseng, Stone picking | |
| Note | The crops applied by the above-stated standard (digging width) are classified based on the average of the general cultivation method and the harvest crops applied by farmers. Therefore, depending on the type of cultivation (ridge size) of the buyer and the tractor model you have, the standard (digging width) may be applied differently, so please purchase it after consulting with the headquarters. | |||||
Working photograph/video
Ginseng harvesting scene
Ginseng harvesting scene
Ginseng harvesting scene
Ginseng harvesting scene
Peony harvesting scene
Stone picking scene
